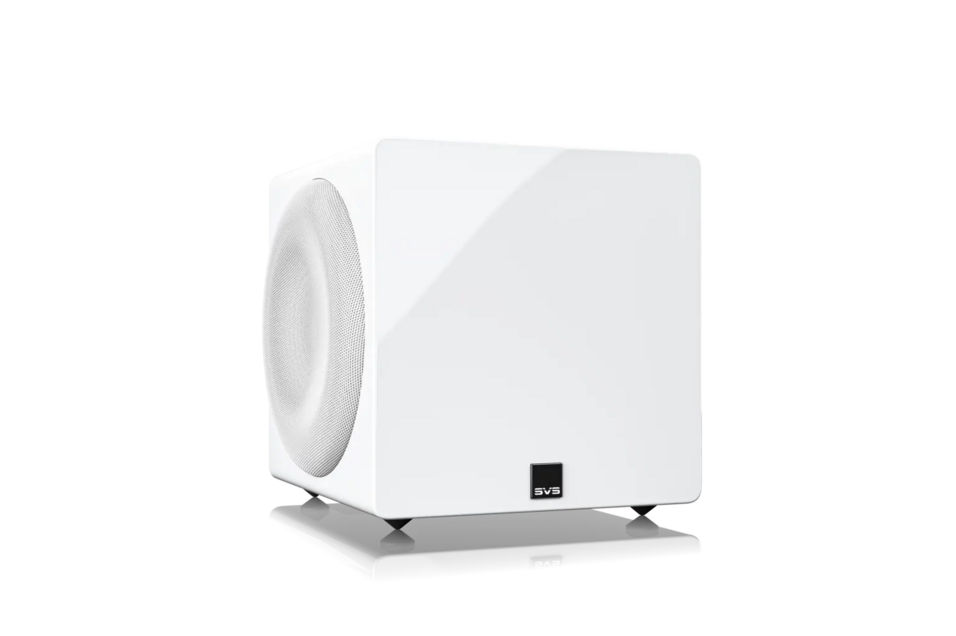

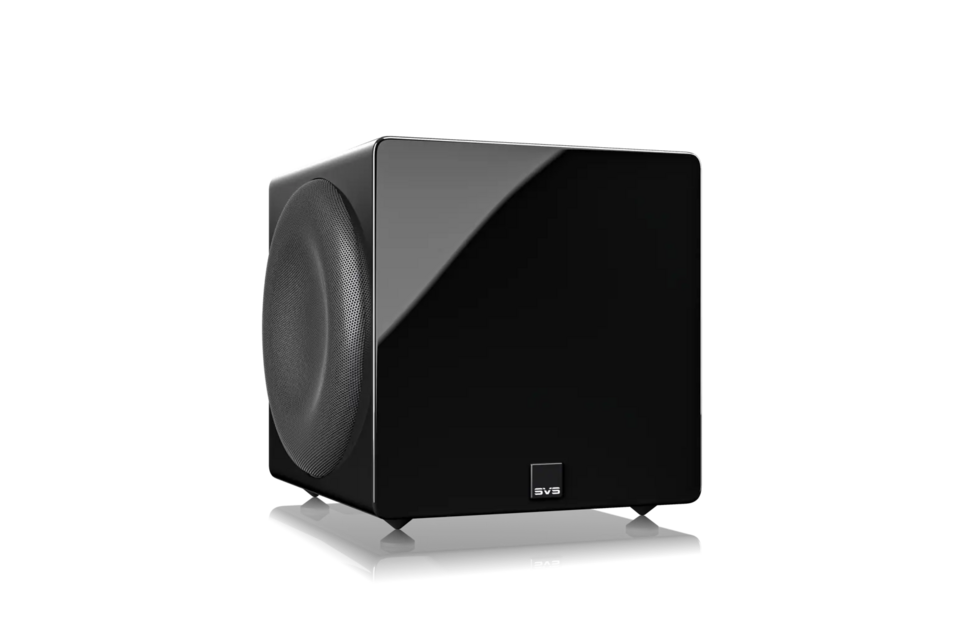

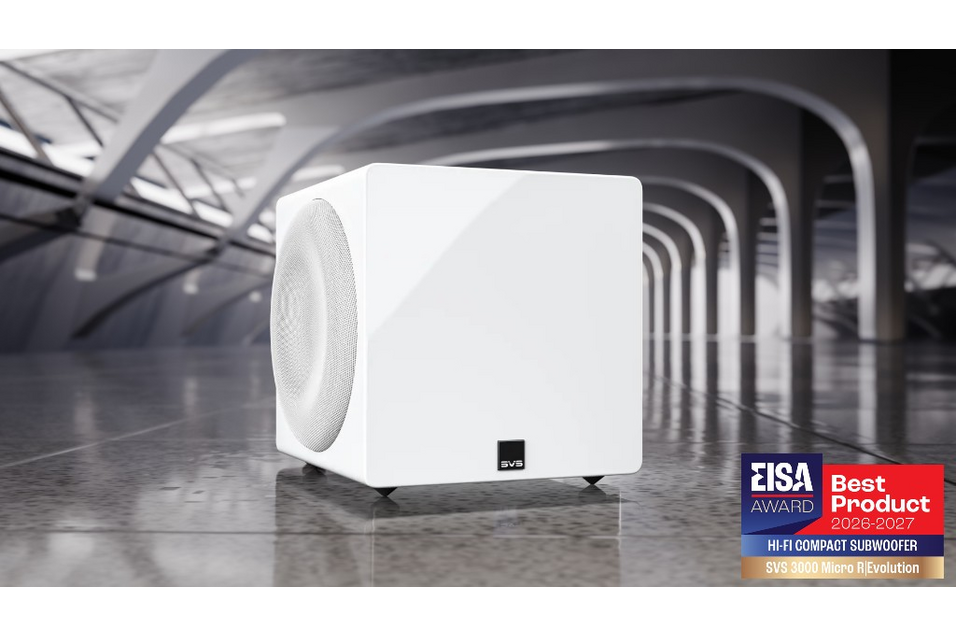

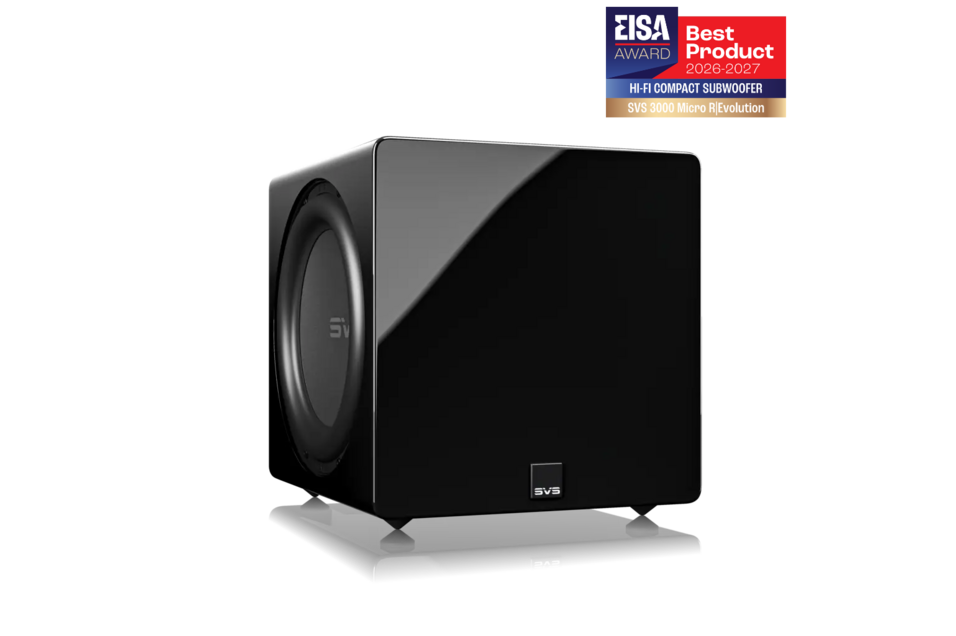

A New Reference Standard for Micro Subwoofers
The 3000 Micro R|Evolution redefines what’s possible in a compact form factor. While traditional micro subwoofers compromise on power and accuracy, this model delivers impressive output down to 20 Hz, combined with exceptional control and musicality.
Thanks to advanced driver, amplifier, and DSP technology, it effortlessly fills any room with deep, precise bass. Combined with the SVS Subwoofer Control app, the 3000 Micro R|Evolution delivers an unmatched subwoofer experience, all in a stylish 11-inch cabinet.

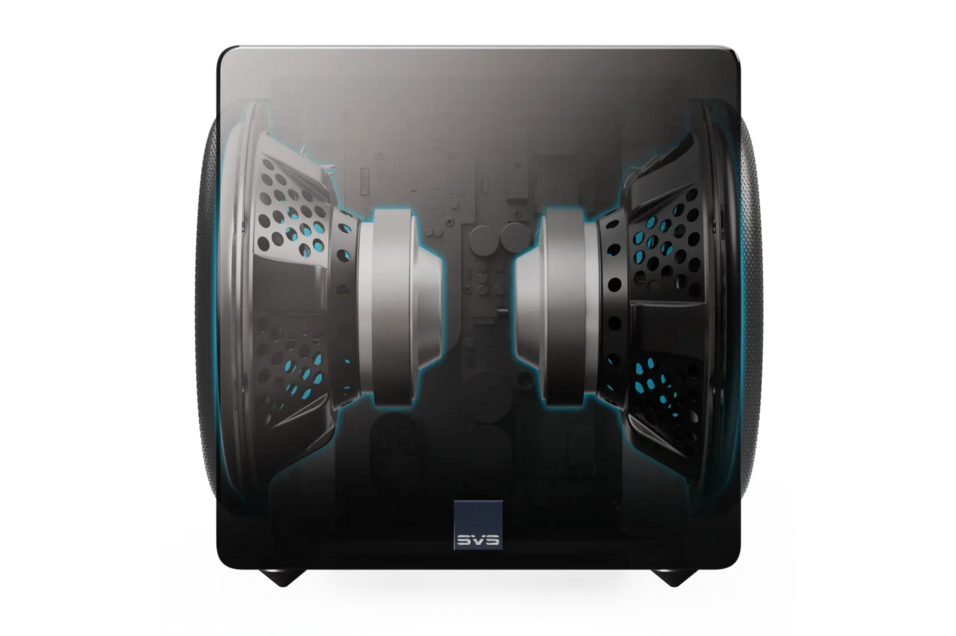

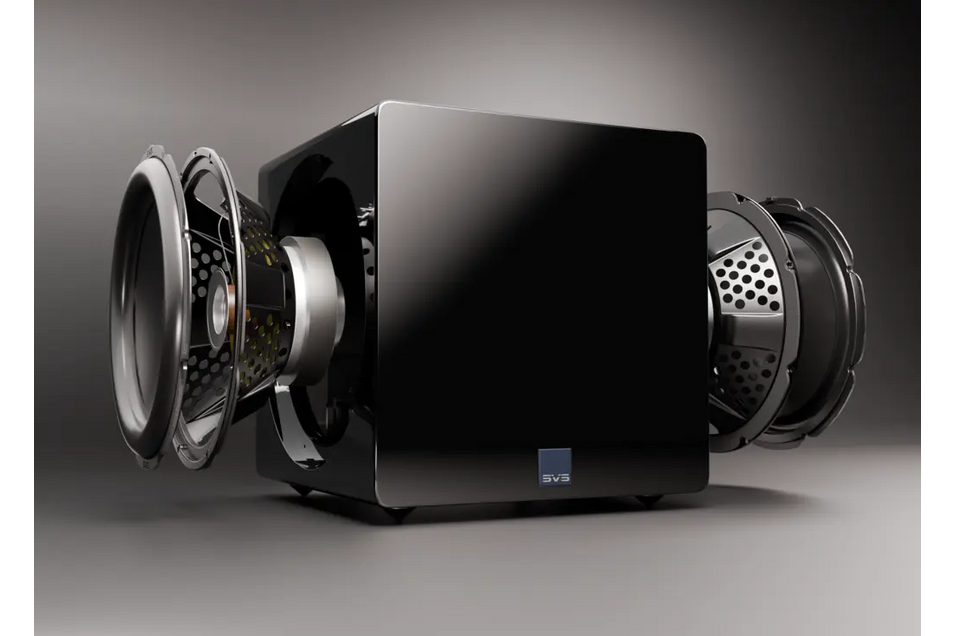

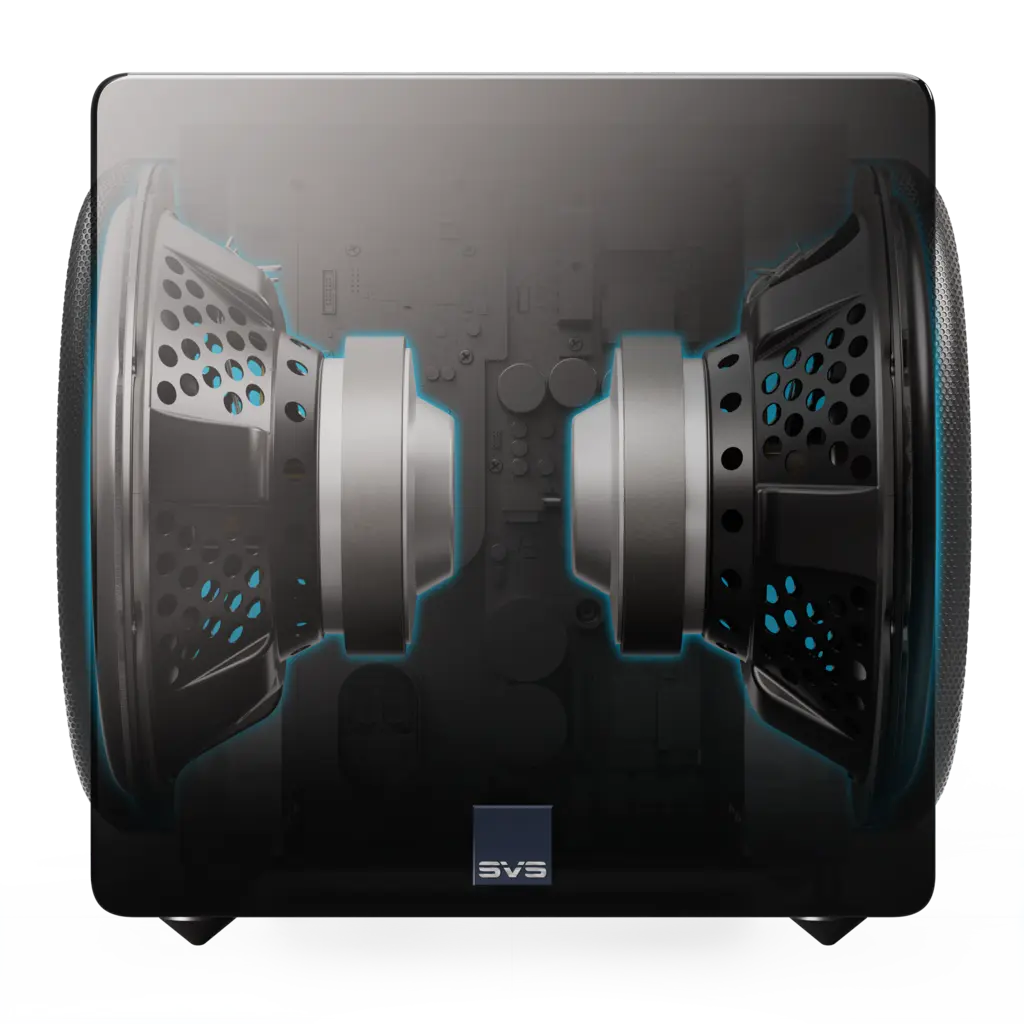

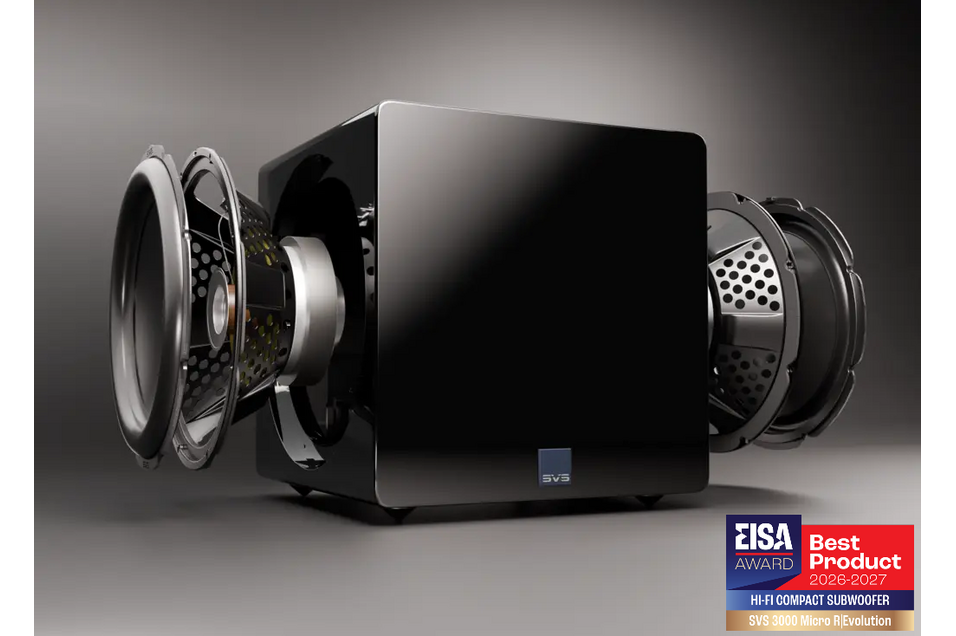

Force-Balanced Dual Opposing 9-inch Drivers
At the heart of the 3000 Micro R|Evolution are two active, side-firing 9-inch high-excursion drivers, custom-engineered by the SVS design team to maximize output from a compact enclosure. The drivers operate in perfect unison, both acoustically and electrically in parallel, delivering powerful and controlled low frequencies.
By firing in opposite directions, mechanical forces are canceled out. This results in a sonically inert cabinet free from unwanted vibrations—one of the biggest limitations of compact subwoofers. Each driver features a progressive inverted surround for maximum linear excursion, essential for moving large amounts of air and producing deep, tactile bass.
Advanced materials, precision motor design, and optimized suspension components ensure maximum linearity and accuracy, even at extreme excursion levels.
• Precisely tuned overhung motor design for optimal control at all levels
• 4-layer copper voice coil for minimal distortion and efficient heat dissipation
• Powerful oversized Y30 ferrite motor system for high output and fast transient response
• Custom 9” baskets with FEA-optimized steel frames for maximum rigidity and damping
Power with Precision
SVS R|Evolution Amplifier Platform
With 1,200 watts RMS and over 4,000 watts peak power, the SVS R|Evolution amplifier fully unleashes the potential of the dual drivers with effortless power and absolute control.
The combination of Class D efficiency and discrete MOSFET technology delivers outstanding performance under all conditions.
• High-current MOSFET output with Class D efficiency
• Advanced switch-mode power supply with stable 160V rail voltage
• 56-bit DSP and premium DACs for maximum headroom and ultra-low noise
• Balanced XLR input for optimal signal integrity
The Brains Behind the Performance
295 MHz Analog Devices DSP
This powerful DSP—five times more powerful than previous generations—controls every aspect of performance, tuning, and usability.
• Extremely precise frequency response and room gain optimization
• Continuous monitoring of voltage, temperature, and performance
• 120 dB signal-to-noise ratio for pristine clarity
SVS Subwoofer Control App
Easily control and fine-tune the subwoofer via Bluetooth from your listening position.
• Full control over volume, crossover, phase, EQ, and more
• 3 presets for music, movies, night mode, and more
• Auto Room EQ (coming soon)
Sealed, Acoustically Neutral Cabinet
The compact, elegantly designed enclosure is optimized for maximum performance without resonance.
• Rigid MDF construction with internal bracing
• Acoustic insulation eliminates coloration
• Protective metal grilles for durability
• Isolation feet reduce room interaction
• Rear OLED display with intuitive controls and “Display Flip” function
Key Specifications
• Driver: Dual opposing 9” long-throw active drivers
• Amplifier: 1,200 watts RMS (4,000+ watts peak), Class D with MOSFET

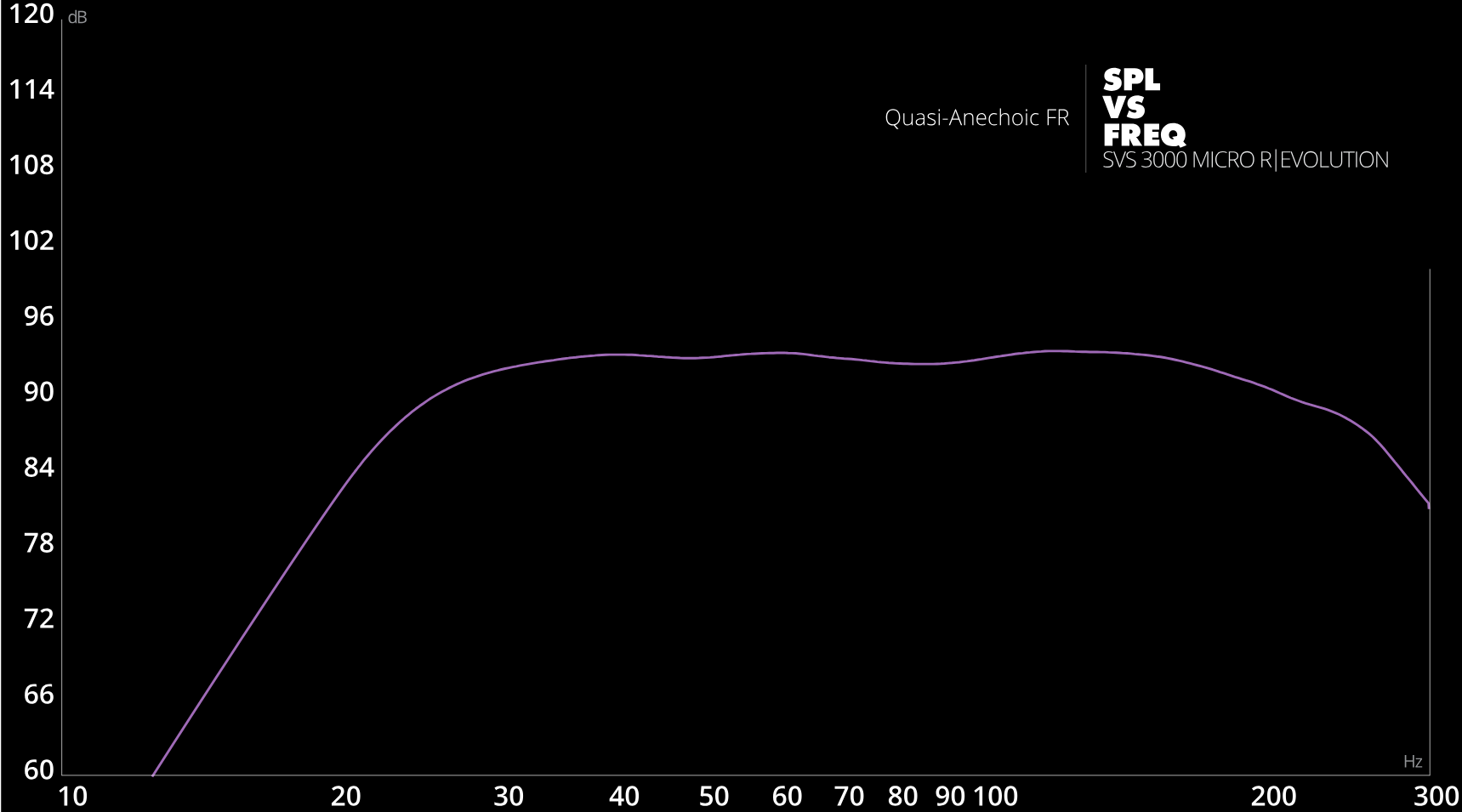

• Frequency Response: 20 Hz – 230 Hz (±3 dB)
• Dimensions: 27.8 × 29.9 × 27.4 cm (H × W × D)
• Weight: 10.2 kg
Performance & Technology
• Up to 2–3 Hz deeper extension in smaller rooms
• 20–60% lower distortion (THD+N) vs. previous generation
• 295 MHz DSP with 56-bit processing for maximum precision
• Real-time monitoring of power, excursion, and temperature
Driver & Construction
• Force-balanced design for minimal vibration
• 27.3 mm Xmax / 32.6 mm Xmech
• Aluminum cone with powerful ferrite motor
• Rigid MDF cabinet with internal bracing
• Metal grilles and isolating elastomer feet

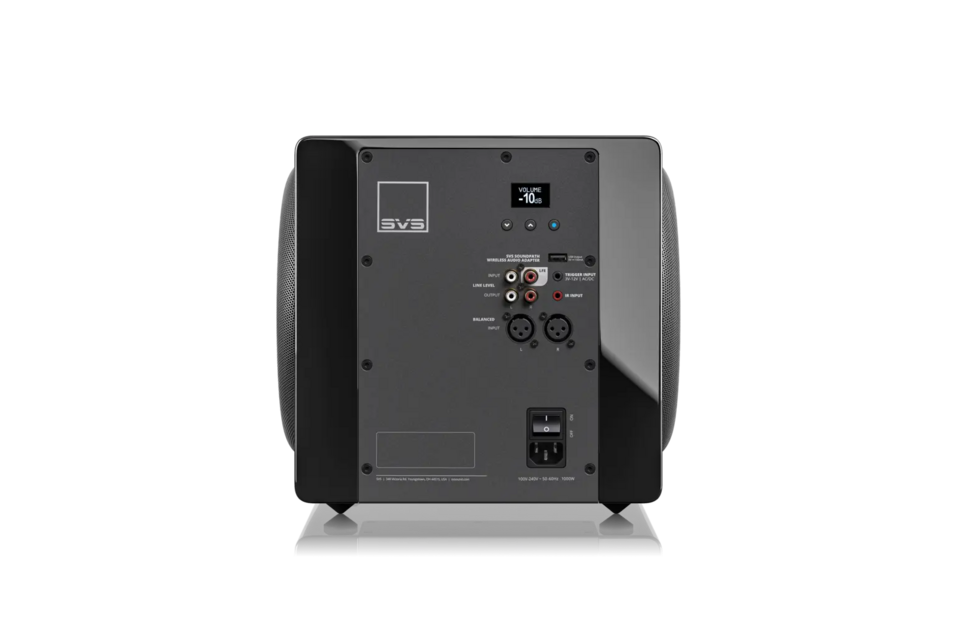

Amplifier & Connectivity
• High-current Class D amplifier with >100 Vrms output
• Advanced power supply with stable 160V rail
• RCA and balanced XLR inputs
• OLED display with direct control
• USB for optional wireless audio adapter
• Auto/On and trigger functionality
App & Control
• SVS Subwoofer Control app (iOS, Android, Fire)
• Full control over volume, crossover, phase, EQ, and more
• 3 presets for quick switching
• Auto Room EQ (coming soon)
